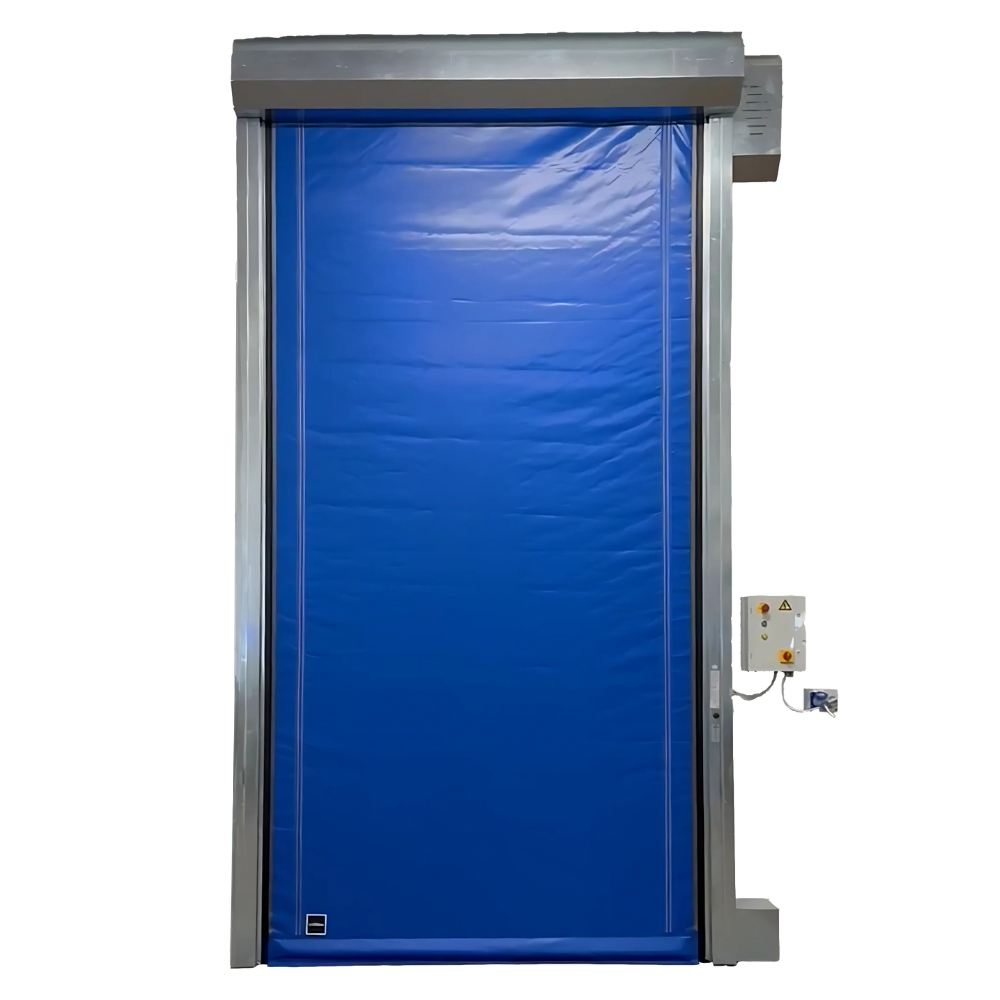

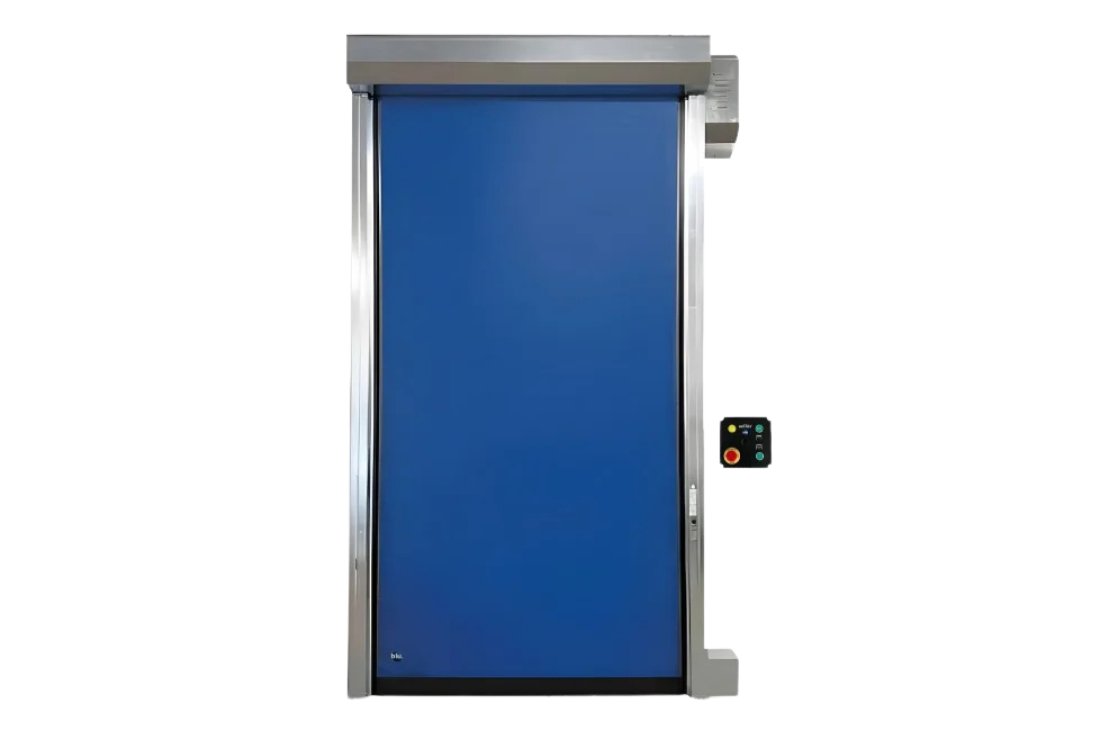

The AUTO-FREEZER thrives in challenging cold storage and refrigerated environments down to -25 degrees, offering precise temperature control and effortless access.
Its quick action and tight seal are designed to safeguard your frozen goods, eliminating spoilage caused by inconsistent temperatures.
The AUTO-FREEZER is made with two flexible curtains, creating an insulated air barrier when they are in a closed position. This helps to maintain a constant internal temperature.
Furthermore, the door has a heated blower on its side leg, keeping warm air flowing between the blades to reduce condensation and prevent ice buildup.
It is equipped with heated elements on both the frame and the motor.
CHOOSE IT BECAUSE
AUTO-FREEZER® FAQs
Can the AUTO-FREEZER door have windows?
Windows are not an option for the AUTO-FREEZER door. They would impair the door's function, and the double PVC sheet cover would block any view.
Exceptional Resiliance

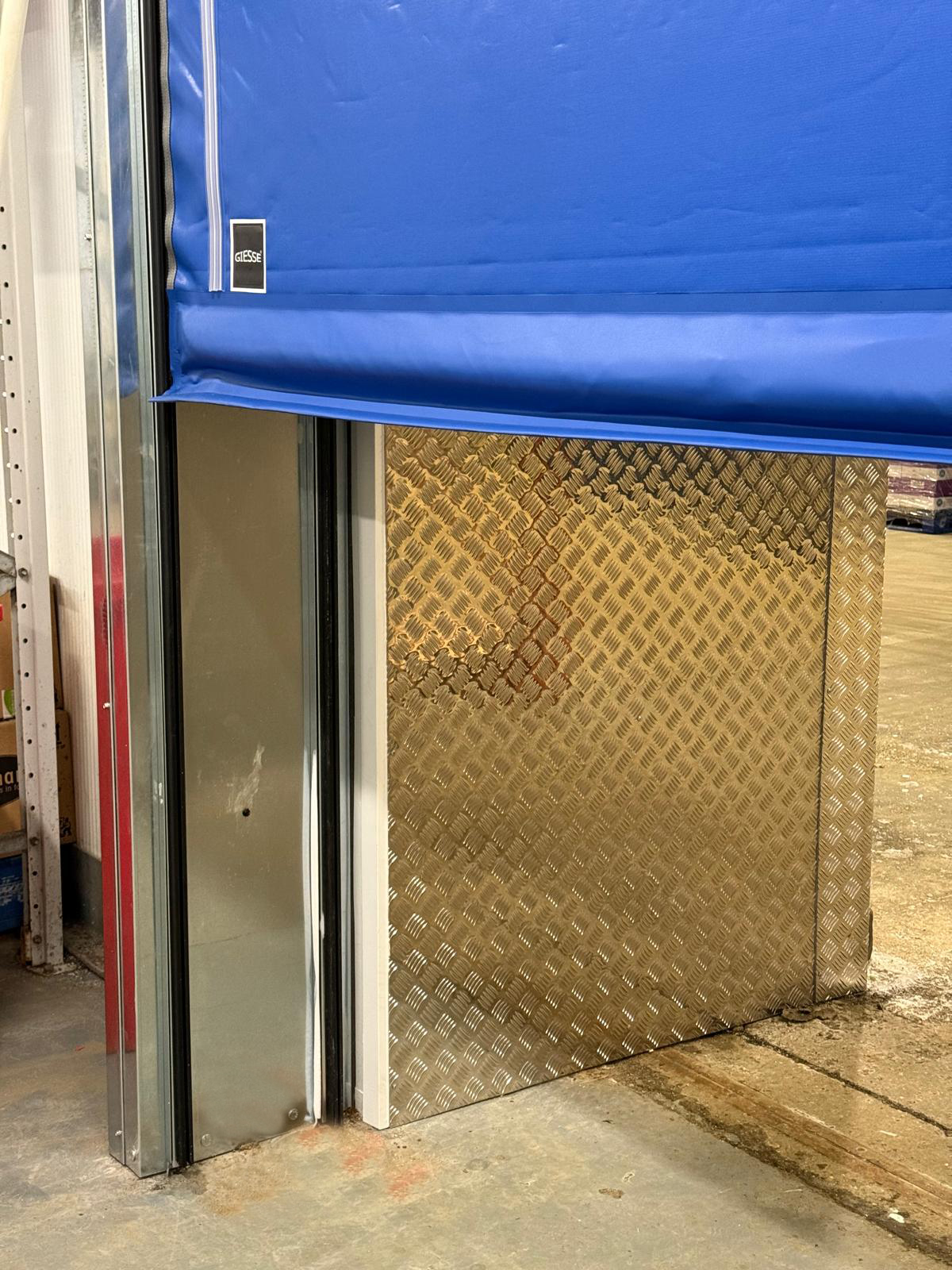

The AUTO-FREEZER features an intelligent zip guide system that’s engineered for ultimate resilience.
This means minimal downtime and maximum operational continuity – even after a bump.

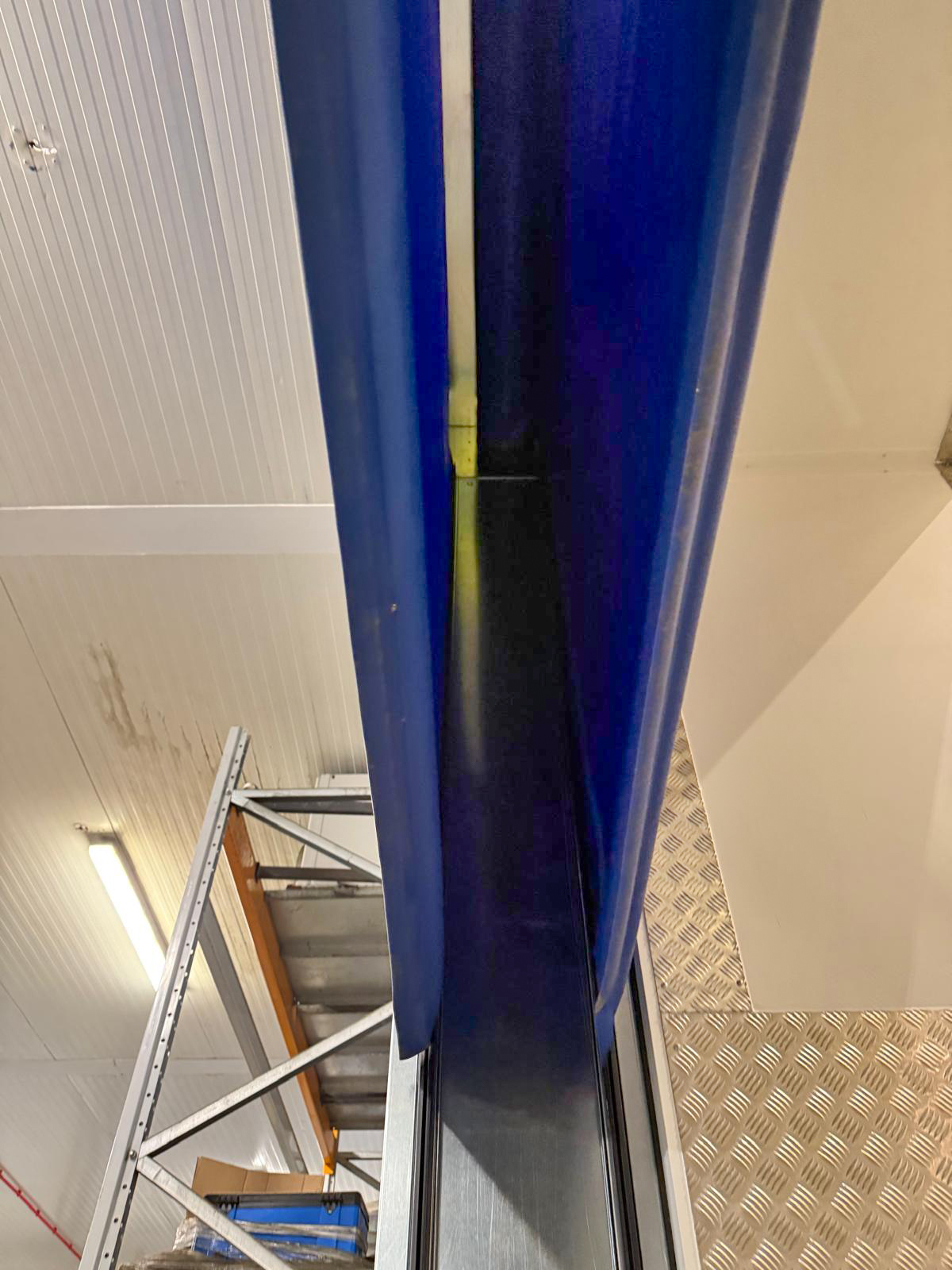

Two Parallel Curtains for Optimum Insulation

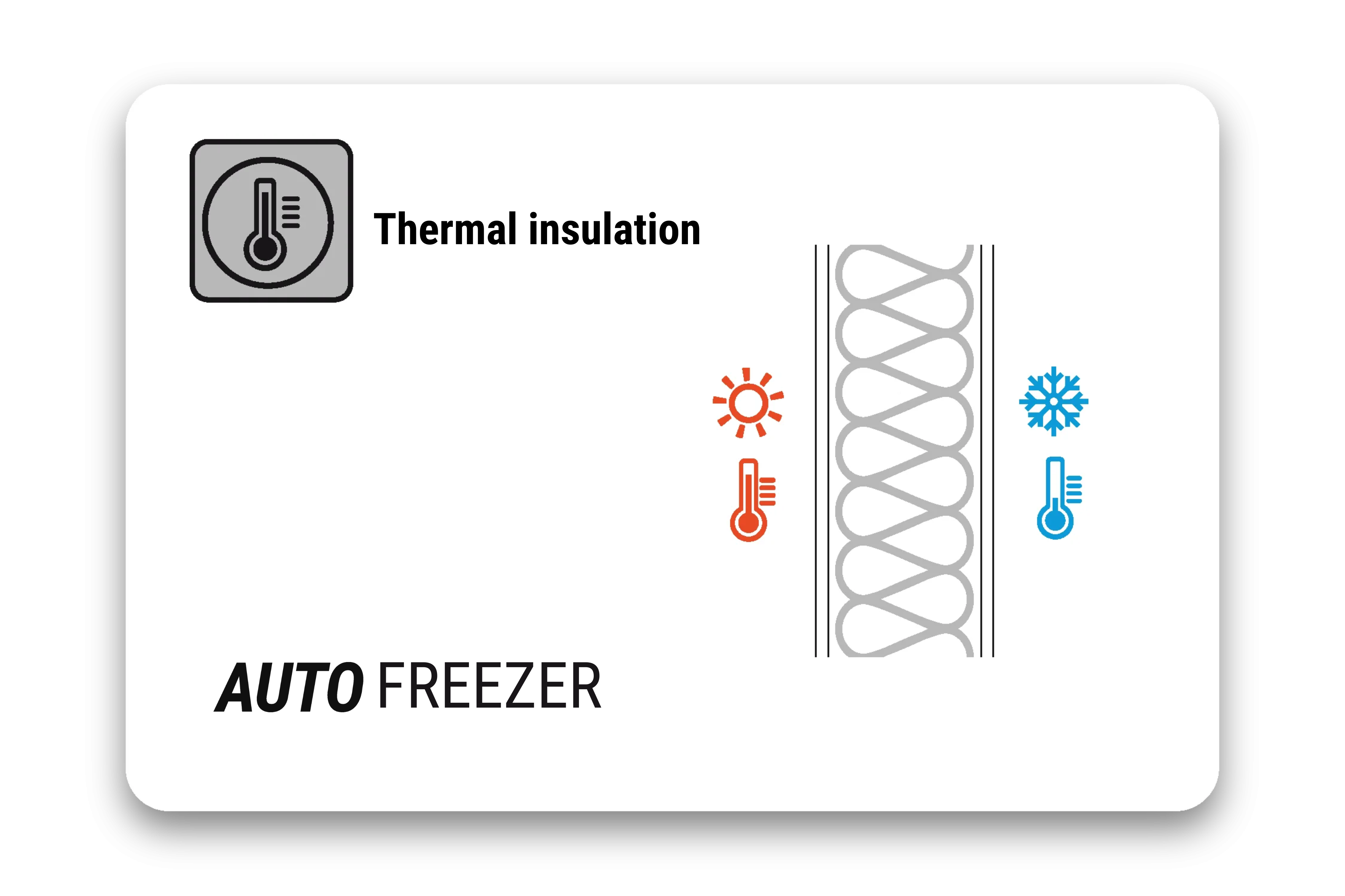

With its two parallel curtains, the AUTO-FREEZER creates an insulated barrier when closed, making it ideal for frozen environments.
The design efficiently separates positive and negative temperatures, preventing dangerous condensation and ice buildup that could compromise health and safety.
This approach not only enhances safety and operational efficiency in cold storage facilities but also significantly improves energy efficiency.
Low Temperature Operation

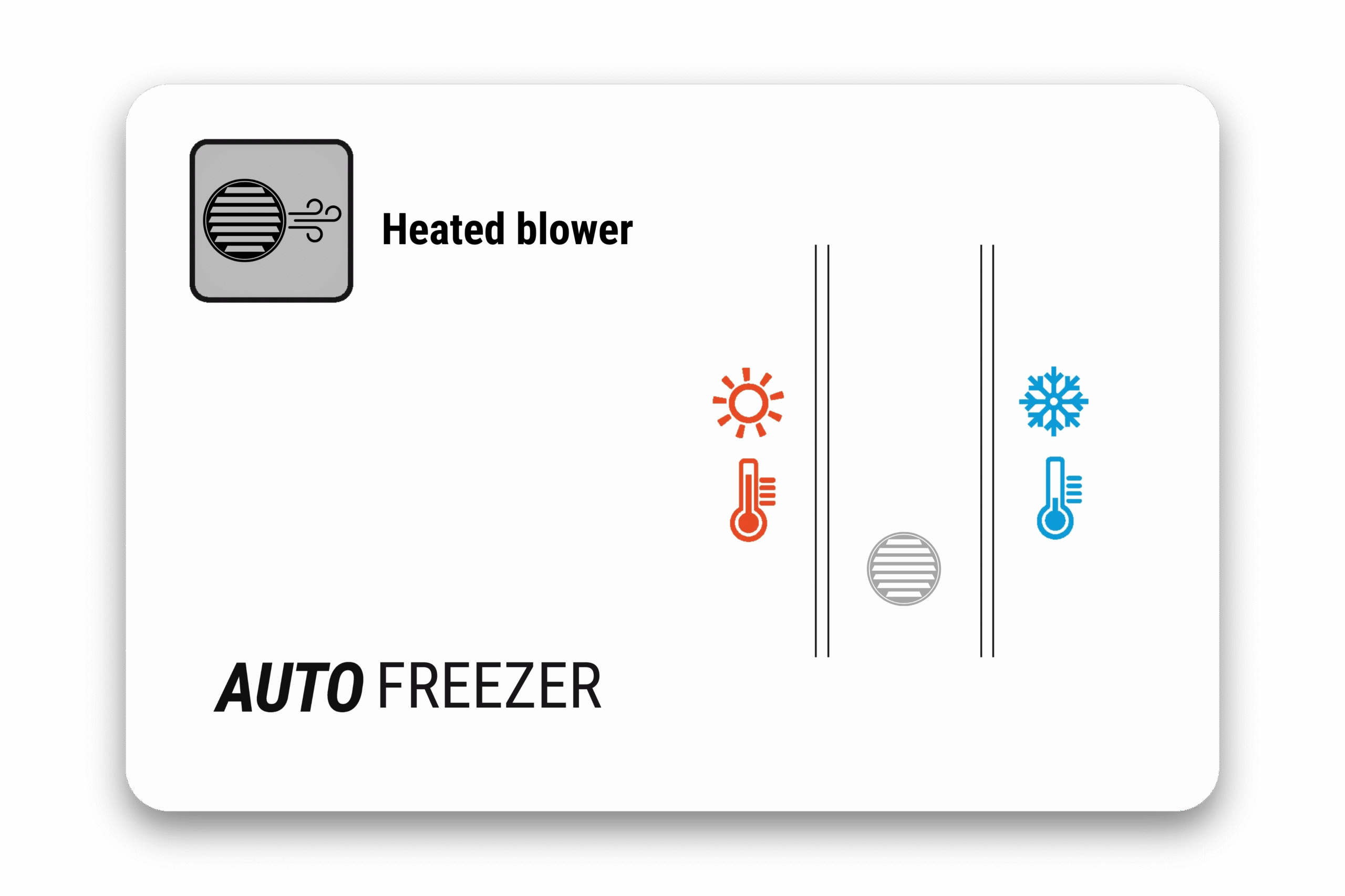

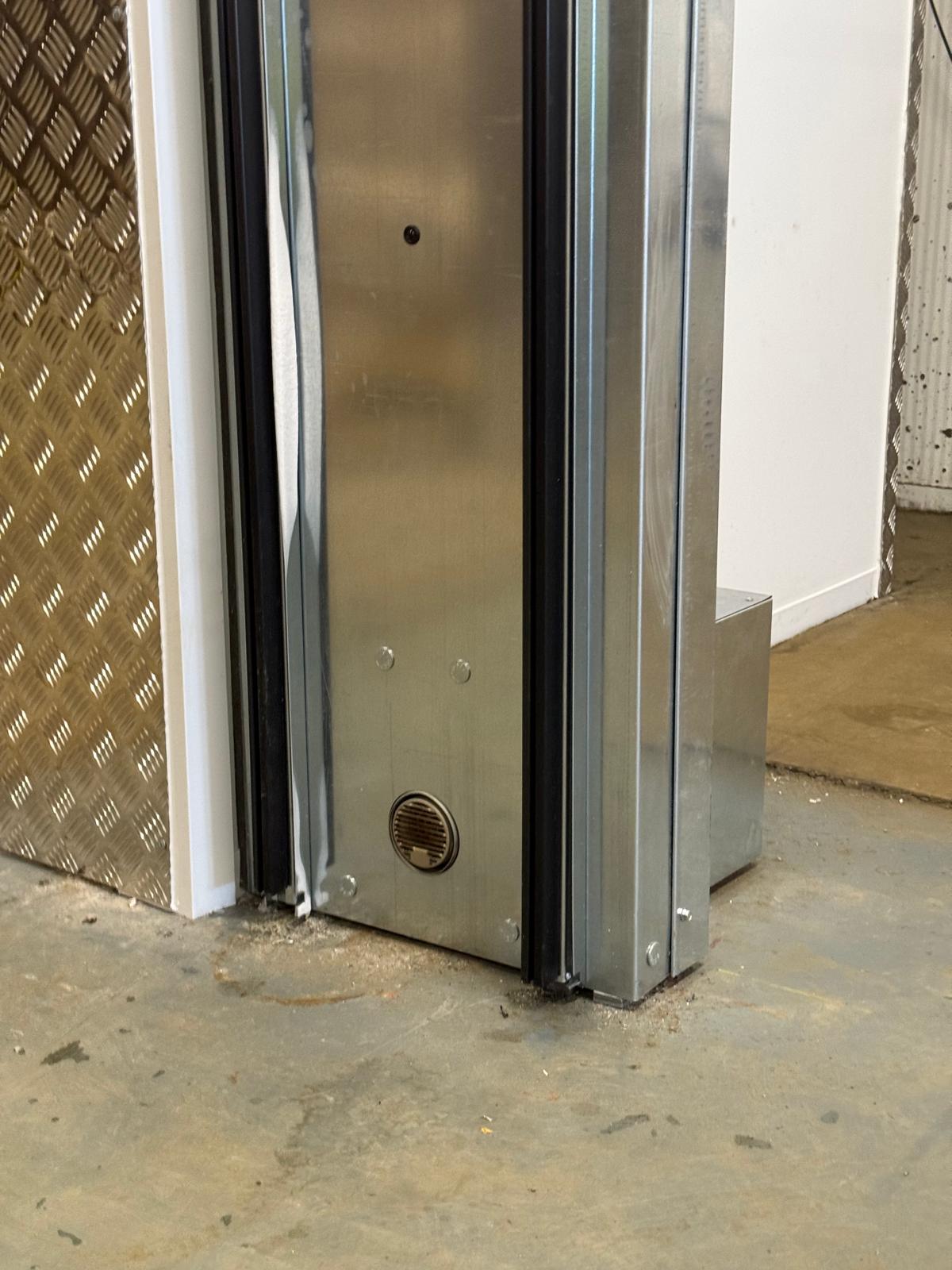

The AUTO-FREEZER door has a heated blower on its side leg. This keeps warm air flowing between the blades, minimising condensation and preventing ice buildup.
By forming an air curtain between its two skins, the system maintains consistent internal temperatures and ensures optimal product preservation.
This enables it to perform across a wide temperature range, reaching as low as -25°C with a .

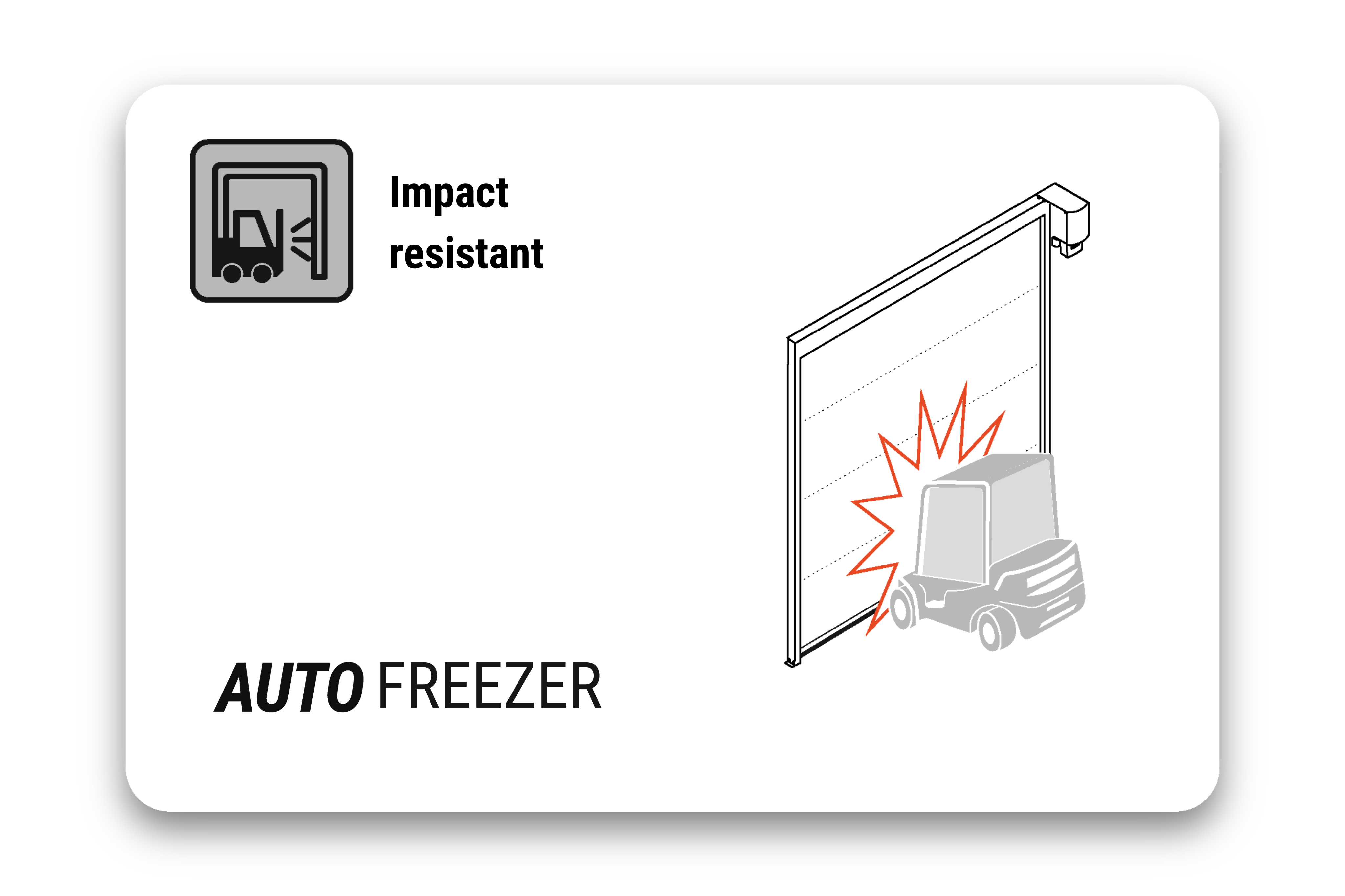

The door has a flexible bottom edge, minimising damage caused by collisions with forklifts and other vehicles.
Ideal for frozen and refrigerated environments, the AUTO-FREEZER features two twin curtains that create an insulated barrier when closed.
The door’s side leg features a heated blower that keeps warm air flowing between the blades, which cuts down on condensation and prevents ice buildup.
Our Trusted Brands
| Drive unit | Side-mounted direct drive |
| Max opening sizes | Width: 6000 mm - Height: 5500 mm |
| Control panel | Low level mounted control box with start and stop push buttons IP65 |
| Structure | Self-supporting |
| Uprights | Steel profiles with polyzene sliding guides |
| Frame Finish | Galvanised steel / stainless steel |
| Activation | Start and stop push buttons integrated on the low level control box |
| Curtain | Double 900 g/m2 PVC coated fabric |
| Windows | N/A |
| Safety | Plug & play photocell set IP65 Anti-jamming device |
| Speed | Max opening speed 1.5 m/sec Closing speed 0.8 m/sec |
| Installation | Internal / external side of the freezer room |
| Power supply | Single phase 230 V - 32 AMP |
| Performance | 1,000,000 cycles |
| Wind resistance | Class 2 up to 6000 mm W x 5500 mm H (clear sizes) |
| Manual opening | Crank handle | Temperature of operation | Up to - 25° C with ΔT < 35° C | Heating elements | Heated tracks, heated motor | Hot air blower | 1 x 3700W or 2 x 3700W (above 2500 mm W) |
