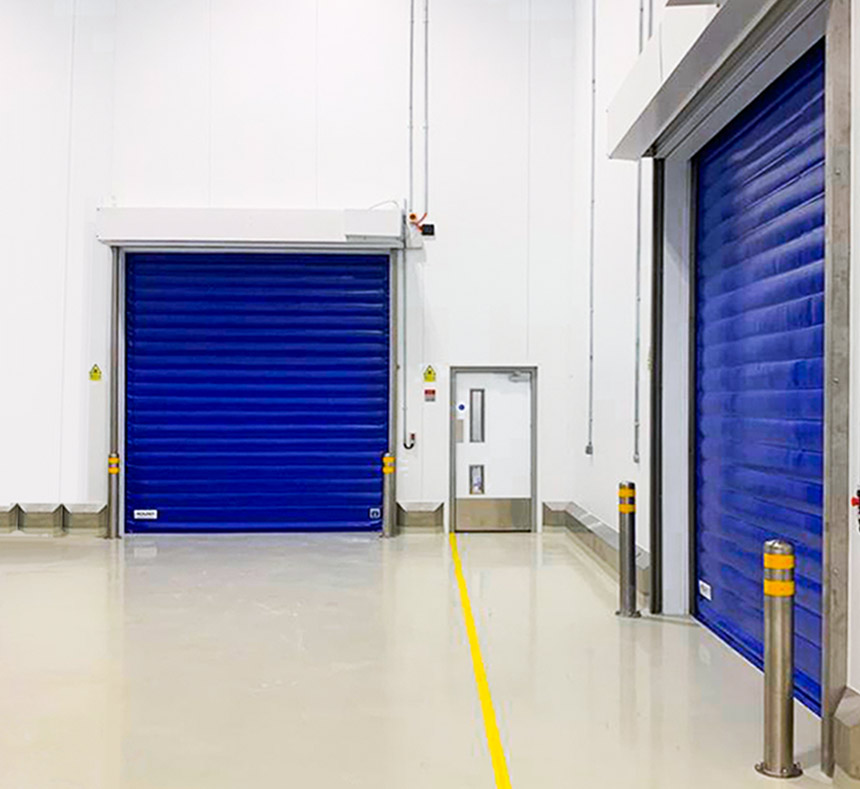

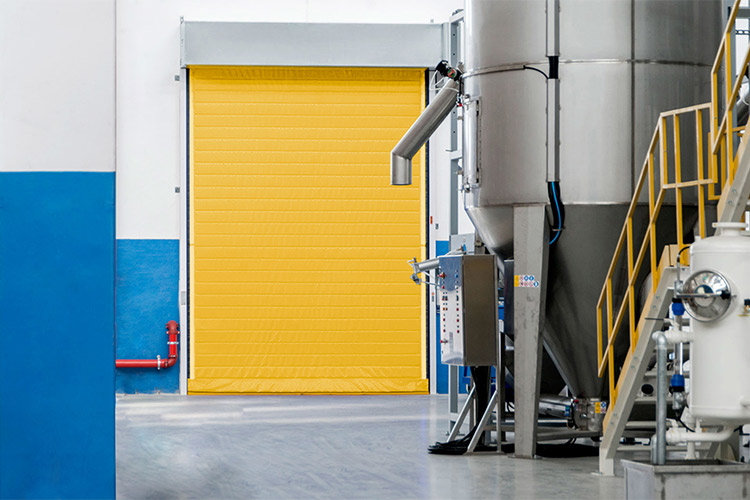

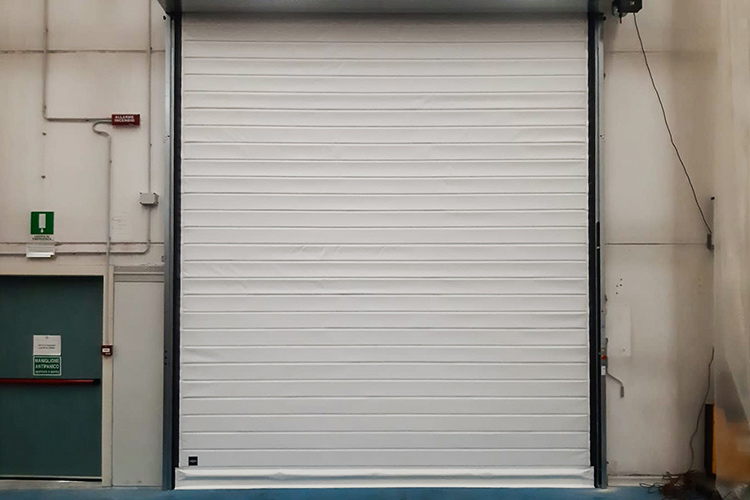

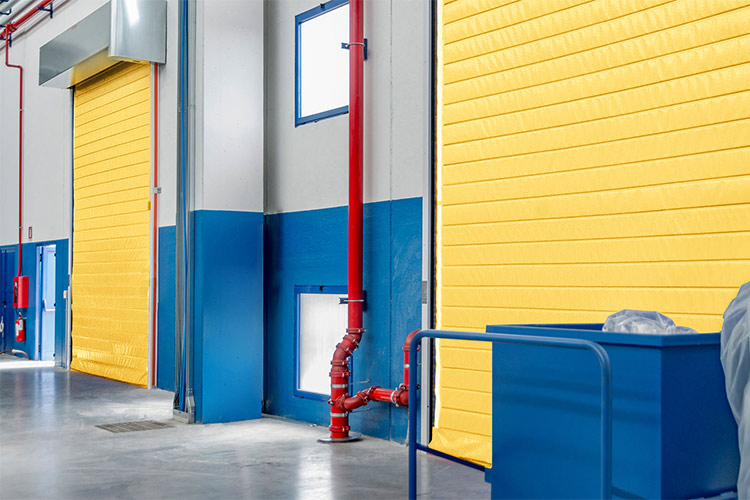

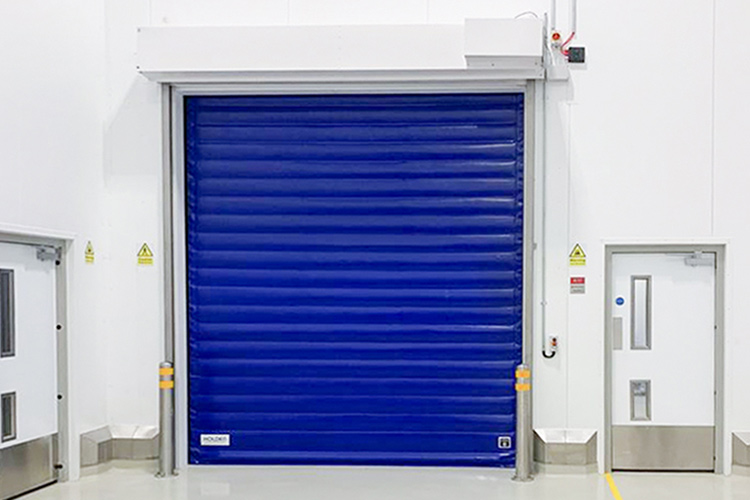

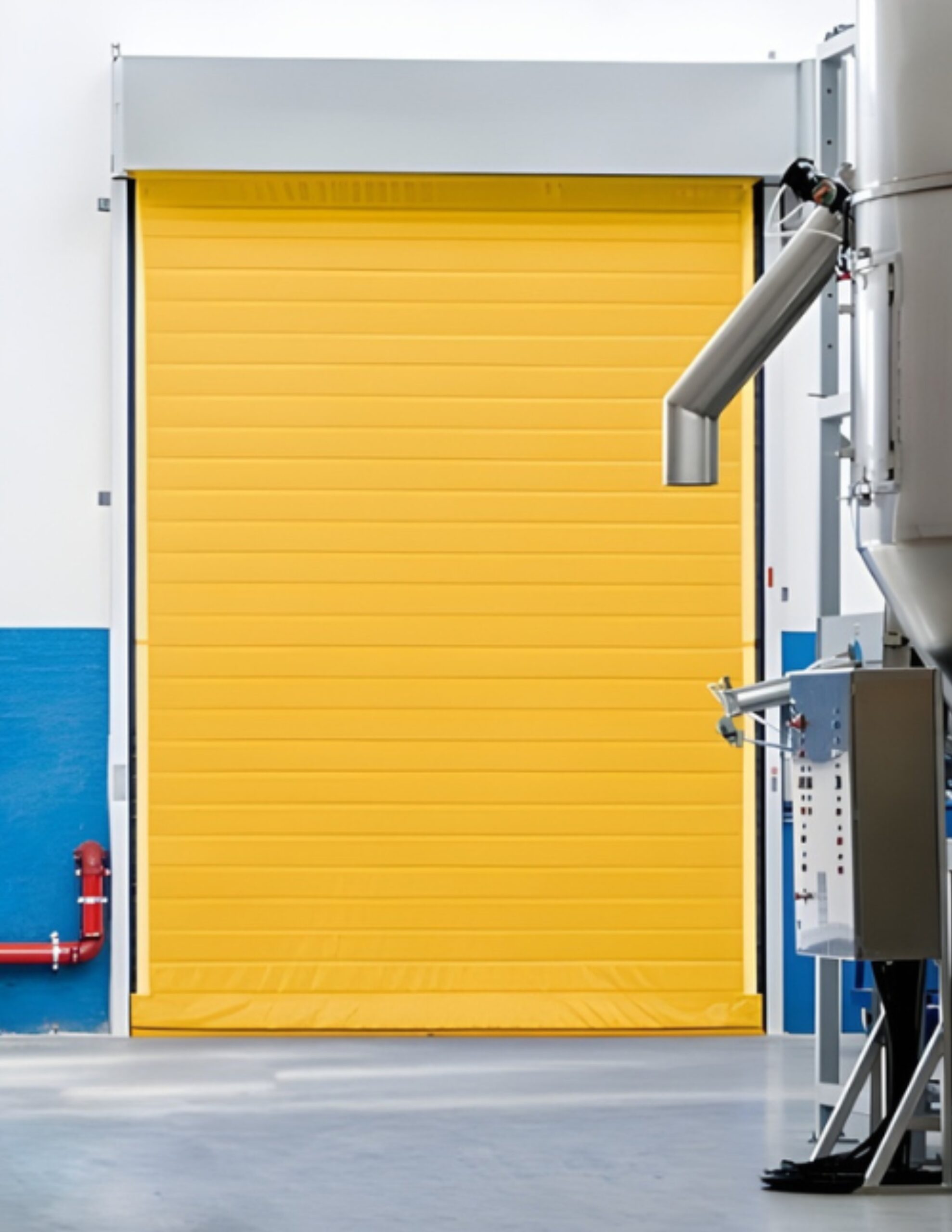

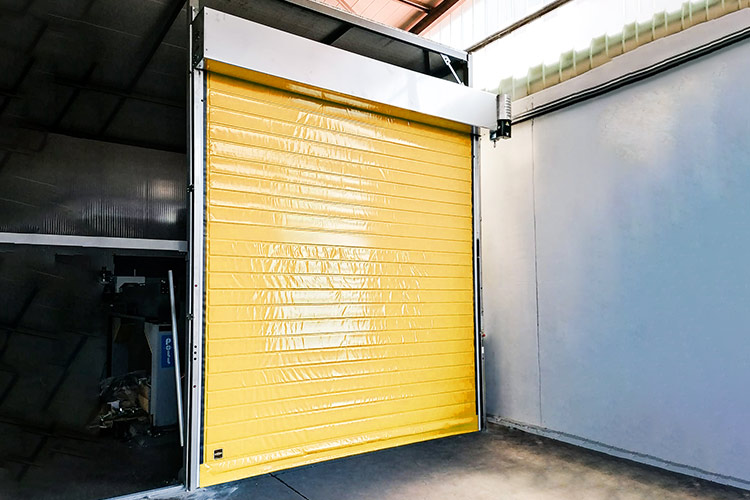

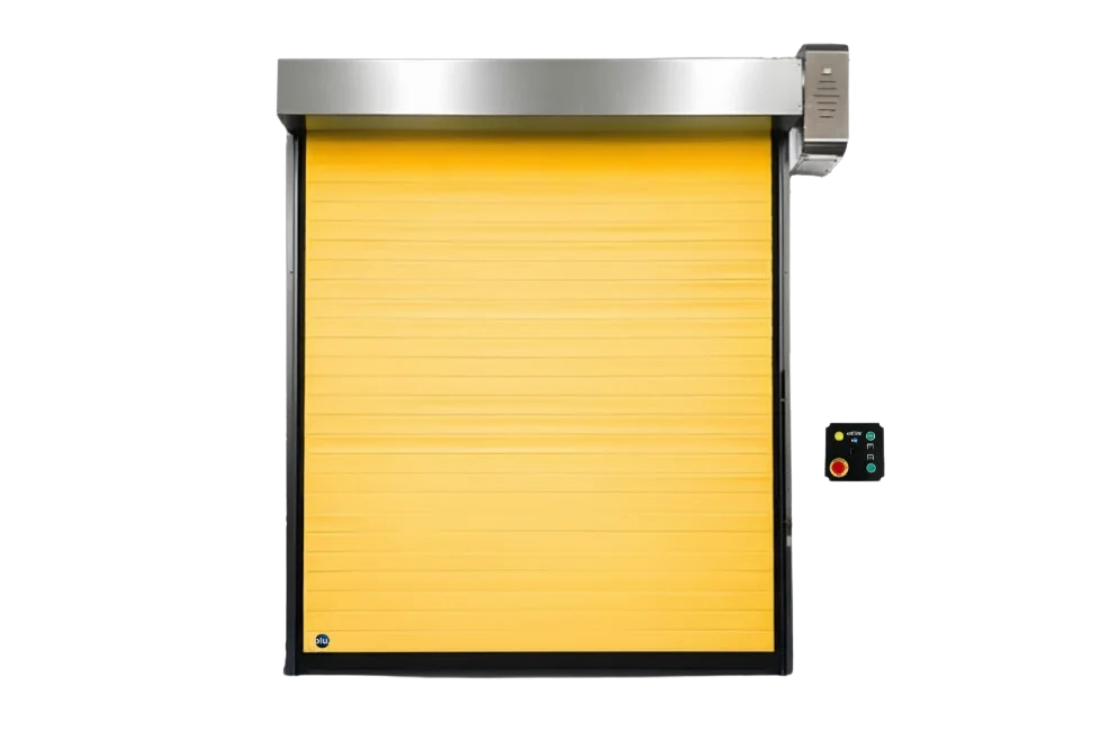

Introducing the AUTO-FRIGO®, our popular high speed cold storage door.
In environments where temperature control is paramount, AUTO-FRIGO is a key component. With a fast action and thermal properties, this cold storage roll up door is vital in preserving the integrity of your temperature-sensitive goods.
Suitable for cold storage down to -10 degrees, it maintains a consistent temperature to prevent spoilage. The door offers a seamless and fast operation to prevent temperature fluctuations, achieving opening speeds of up to 1.5 meters per second.
Equipped with a zipper edge curtain, AUTO-FRIGO high speed roller doors also guarantees exceptional sealing performance and reset facilities.
CHOOSE IT BECAUSE
AUTO-FRIGO FAQs
Can the AUTO-FRIGO® door be used for frozen environments at -20 degrees?
No, the AUTO-FRIGO® rapid door is used in refrigerated spaces down to -10 degrees. If you are looking for a freezer door, take a look at the DUAL-FREEZER.
In order to ensure perfect functioning of the door, particular attention must be paid to the high temperature differences between the rooms.
Can the AUTO-FRIGO® be used to close off external spaces?
The AUTO-FRIGO ® rapid door is designed to be used to compartmentalise refrigerated warehouses.
If you want to use a rapid insulated door towards the outside, the DUAL-AIR ® folding door is recommended.
What is the maximum size of an AUTO-FRIGO® door?
The AUTO-FRIGO® rolling door can have a maximum size of 4.5 m in width and 4.2 m in height.
It is always advisable to size the opening according to the vehicle passing through and the material transported to avoid dispersion during openings.
What is the AUTO-FRIGO® rapid door made of?
The AUTO-FRIGO® cold storage door has a mattress cover composed of three overlapping layers: PVC sheet, expanded polyethylene and PVC sheet.
What is the transmittance value of the AUTO-FRIGO® rapid door?
The AUTO-FRIGO® cold storage door cover has a transmittance of approximately 2.48 W m2k.
Thermal transmittance is the amount of heat that passes from a heated environment to a cold environment through a given surface.
The single-layer door covering has a thermal performance 4 times lower than the mattress covering.
Can I have windows in the AUTO-FRIGO® insulated door panel?
No, the AUTO-FRIGO® cold storage door mattress has an insulating function that would be compromised by inserting windows made of a different material.
Tailored to Refrigerated Environments
The AUTO-FRIGO® is tailored for refrigerated environments experiencing significant temperature differentials and low humidity levels.
With a sandwich curtain featuring PVC fabric, expanded polyethylene, and additional PVC fabric layers, the AUTO-FRIGO® door provides impeccable thermal insulation.
Prevents Ice and Condensation
AUTO-FRIGO® maintains continuous insulation without creating thermal bridges. This is pivotal in preventing the build up of ice or condensation between sections.
By placing a special plastic profile between the metal structure of the AUTO-FRIGO® and the installation wall, the perimeter thermal bridge is cut.
Efficient Temperature Control
The low thermal transmittance and the control of thermal bridges guarantee a stable temperature where AUTO-FRIGO® is installed. The dispersion of thermal and refrigeration energy is reduced, significantly lowering the consumption of energy-intensive machinery.
The plastic profiles between the door frame and the fixing wall create a thermal break.

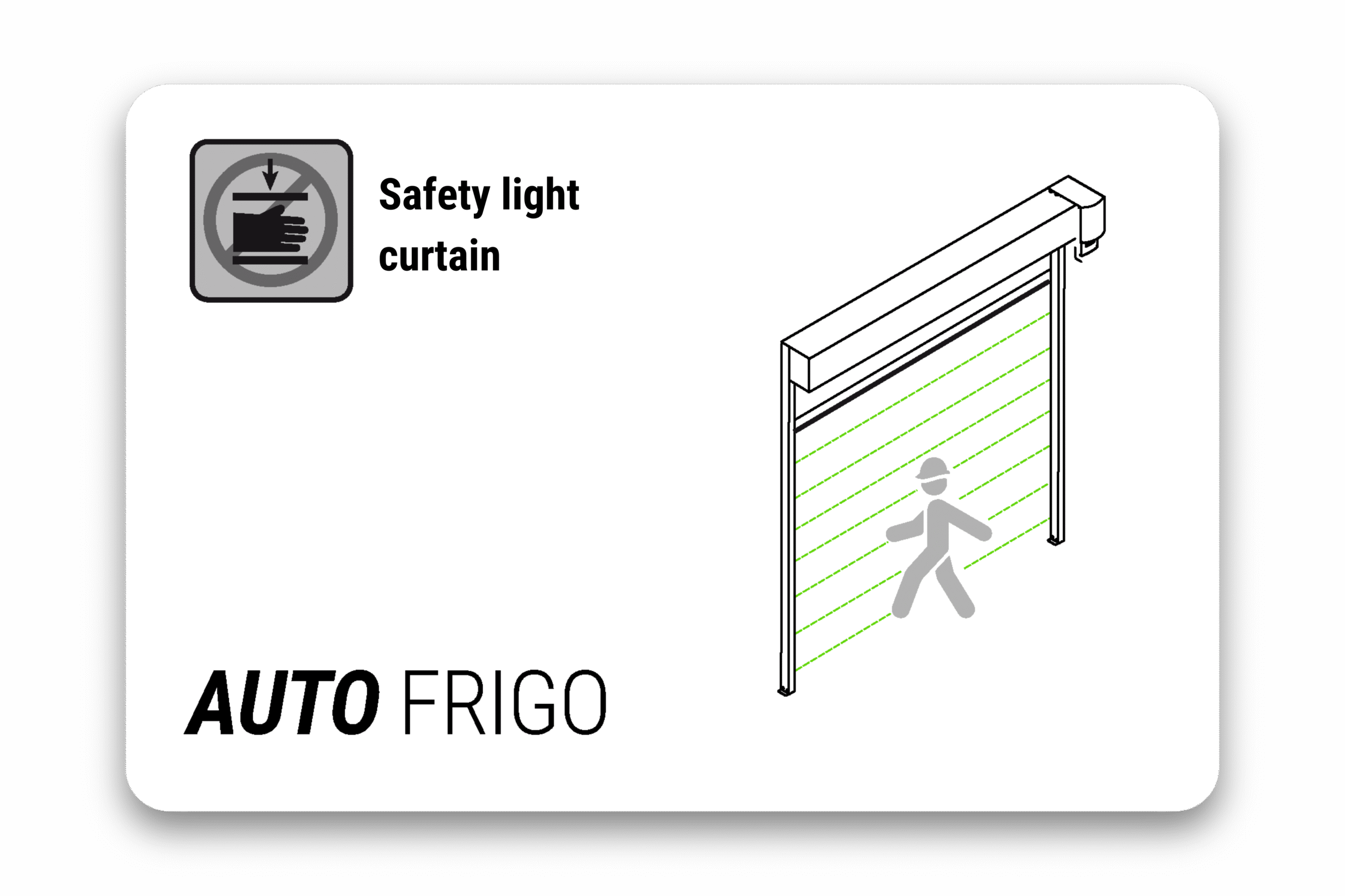

There is a safety light curtain integrated on the legs. When it detects an obstacle it inverts the direction of the curtain.
The curtain is filled with polyethylene expanded foam which guarantees a high U value.
Our Trusted Brands
| Drive unit | Side-mounted direct drive |
| Max opening sizes | Width: 4500 mm - Height: 4200 mm |
| Control panel | High level pre-wired mounted on the motor / low level wall mounted IP65 |
| Structure | Self-supporting |
| Frame Finish | Galvanised steel / Stainless steel / Powder coated |
| Uprights | Steel profiles with polyzene sliding guides |
| Guides | Polyethylene sliding profiles |
| Activation | Start and stop push buttons integrated on the upright / low level control box |
| Curtain | 900 g/m2 PVC coated fabric foam filled insulated curtain 10 mm thick |
| Safety | Plug & play infrared light curtains IP67 |
| Speed | Max opening speed 1.5 m/sec / Closing speed 0.8 m/sec |
| Installation | Internal |
| Power supply | Single phase 230 V - 16 AMP |
| Performance | 1,000,000 cycles |
| Windows | N/A |
| Thermal transmission | 2.48 W m2k |
| Manual opening | Crank handle |
| Wind resistance | Class 2 up to 6000 mm W x 5500 mm H (clear sizes) Class 3 up to 5500 mm W x 5500 mm H (clear sizes) upon request Class 4 up to 3500 mm W x 5500 mm H (clear sizes) upon request |
- Lowers energy consumption costs.
- Durable against impacts and repairable.
- Ideal for high-traffic areas.
- Demonstrates minimal air leakage, promoting energy conservation.
- Serves as an effective hygiene barrier.
- Insulated
