AUTO-PHARMA clean room high speed doors are made for pressure-controlled environments with strict hygiene requirements.
With their fast action, tight seal and easy-to-clean materials, AUTO-PHARMA doors significantly lowers the risk of contamination in pharmaceutical settings.
Furthermore, they include a motion sensor, allowing automatic opening without the need for contact with hands – further improving hygiene management.
For efficient, secure and clinical pharmaceutical high speed clean room doors, these are an ideal solution to optimise your facility.
AUTO PHARMA Clean Room High Speed Doors – Product Information

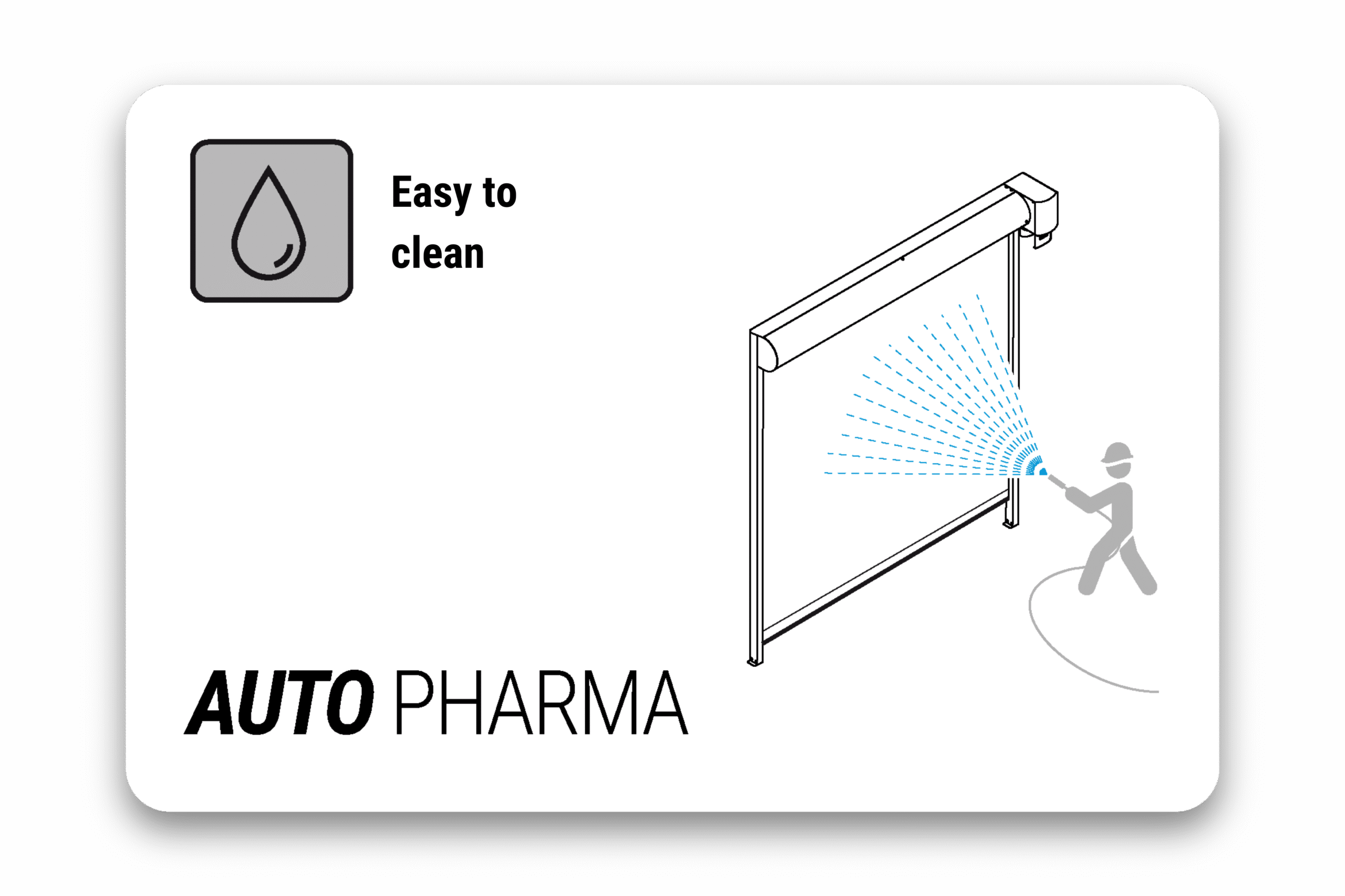

Hygienic and Easy to Maintain
AUTO-PHARMA high speed clean room doors are a top choice for internal doorways requiring segregation for hygiene purposes. Key features include:
Wipeable, Hygienic Curtain Material – The door’s PVC curtain is dirt repellent, mould resistant and non-toxic, making it ideal for pharmaceutical settings. It is also easily washable due to the PVC’s smooth, non-porous material.
Stainless Steel Structure – The door is made with clean room grade 304 stainless steel. This is easy to clean to corrosion resistant, helping to support a sterile and contamination-free environment.
Effective Barrier – With its tight seal and fast action, the AUTO-PHARMA prevents the ingress of contaminants and harmful particles.
Low Air Permeability
Tested for air permeability, these doors excel in environments vulnerable to pressure differentials like clean rooms. Key features include:
Tight Sealing – Engineered for an ultra-tight seal, the AUTO-PHARMA prevents pressure differentials associated with “leaky”, inefficient doors.
Fast Action – Operating at high speeds of up to 2.0 m/sec, the AUTO-PHARMA clean room high speed doors help to prevent pressure loss.
Fast, Easy Repairs – With an innovative zipper repairing system, the door curtain can be easily repositioned after a collision. This quick repair also helps to prevent pressure fluctuations that compromise the cleanroom’s integrity.
Motion Sensor for Automatic Opening
The risk of contaminated surfaces is greater when they come in to contact with hands.
To reduce the spread of bacteria and viruses, the AUTO-PHARMA® roll up clean room door includes a motion sensor, allowing it to open and close automatically.
Furthermore, it is compatible with our exclusive ‘blu’ Bluetooth app, enabling opening and closing via a handheld device.
AUTO-PHARMA FAQs
What are the maximum dimensions of the AUTO-PHARMA clean room speed door?
AUTO-PHARMA high speed clean room doors have maximum dimensions of 3.5 m in width and 3.5 m in height.
What IP (ingress protection) rating does the AUTO-PHARMA safety sensor have?
The AUTO-PHARMA’s IP65 rating is as follows:
Dust resistance: 6 – The AUTO-PHARMA offers complete protection against dust and other particles.
Liquid resistance: 5 – The door has excellent water resistance, ensuring it can withstand frequent washing and sanitisation without damage to internal elements.
Can the AUTO-PHARMA be used in food environments?
Yes. The AUTO-PHARMA’s materials are dirt-repellent, non-toxic and easy-to-clean, making it ideal for the food sector.
While this is the case, we recommend the AUTO-FULL for food and drink settings.
We also offer a range of freezer and cold room doors.
Auto Pharma Clean Room High Speed Doors – Key Features
The AUTO-PHARMA door frame is constructed in stainless steel, washable with detergents and corrosion resistant.

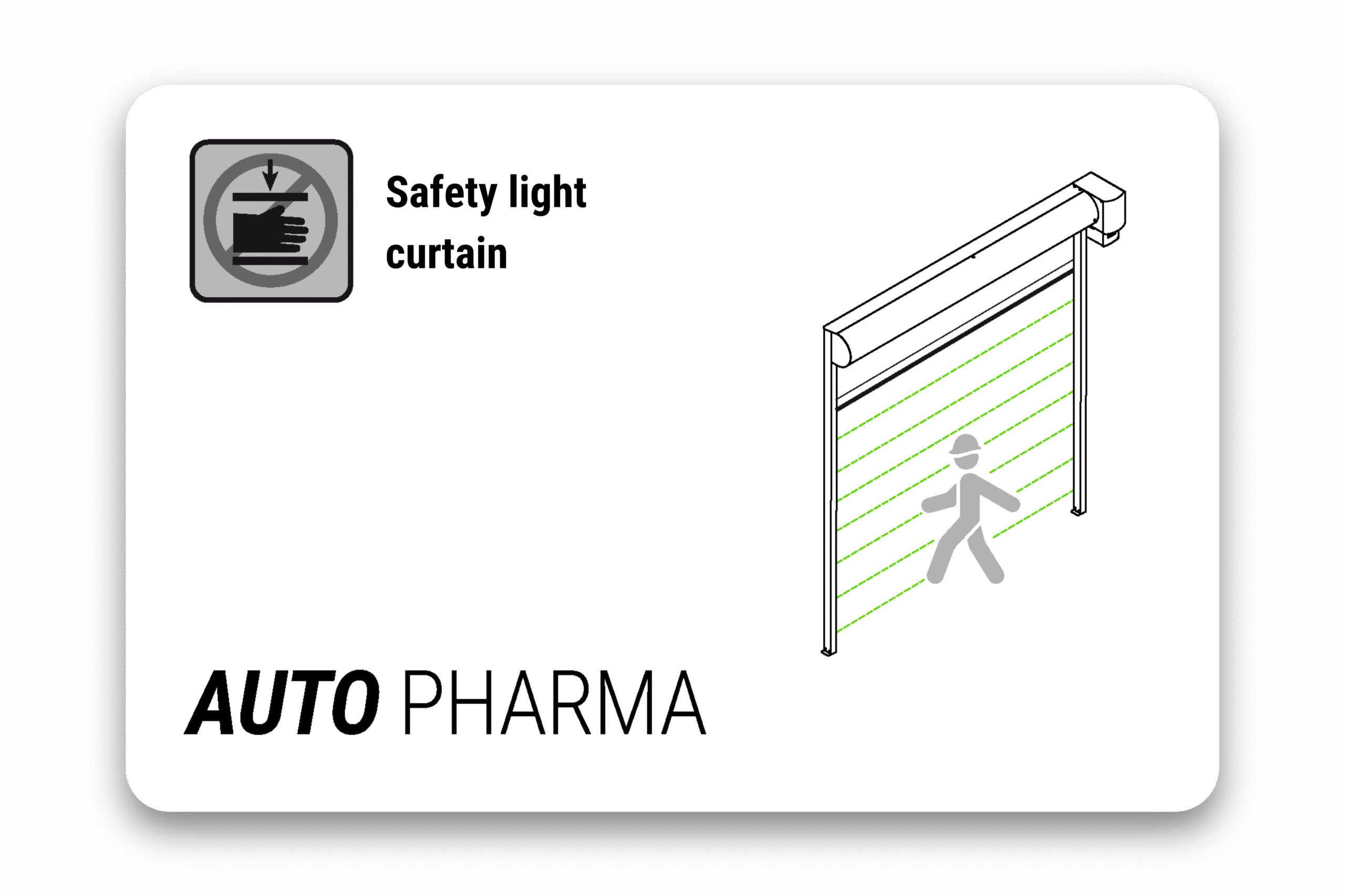

There is a safety light curtain integrated on the legs. When it detects an obstacle it reverses the direction of the curtain.
With tight sealing and fast action, AUTO-PHARMA reduces the ingress of contaminants and harmful particles.
Reviews
| Drive unit | Lateral - Single phase pre-wired |
| Max clear opening sizes | Width: 3500 mm - Heigth: 3500 mm |
| Head box | 350 x 350 mm |
| Uprights | Self-supporting frame including pre-wired light curtains |
| Guides | Polyethylene sliding profiles |
| Activation | Blu. control box - No touch sensor |
| Curtain | PVC Coated fabric |
| Safety | Intelligent Light Curtains |
| Speed | 1.2 m/s |
| Installation | Internal |
| Wind resistance | Class 2 up to 3500 mm W x 3500 mm H (clear sizes) Class 3 up to 5500 mm W x 5500 mm H (clear sizes) upon request Class 4 up to 3500 mm W x 5500 mm H (clear sizes) upon request |
| Positive permeability | Class 4 – Δp Tested with a pressure of 50 [m3/m2h] = 1.62 |
| Negative permeability | Class 4 – Δp Tested with a pressure of 50 [m3/m2h] = 1.76 |
- Easy clean
- Resistant to oxidation
- Avoid the collecting of liquid, dust or any impurity on the frame
- Washable in all parts respecting the hygienic restrictions
- Maintain the different characteristics of the environment they are located in
- Settable with mobile device
If AUTO-PHARMA® is not the door for your needs, look at the other models!
