A freezer door with an integrated air curtain, built for maximum protection of the cold chain.
check
Freezer-Grade Insulation
check
Integrated Air Curtain
check
Maximum Cold Chain Protection
AUTO-FREEZER AC is insulated for deep-freeze conditions, in the same way as AUTO-FREEZER, for freezer rooms that a standard door can’t handle.
A directed air blade further reduces thermal exchange at the opening, on top of the insulated curtain’s own protection.
Where cold chain integrity is critical and the opening sees frequent traffic, the extra barrier helps protect the most sensitive frozen stock.
01
blu. Technology
Blu, the GS Doors' smart control technology, for real-time diagnostics, remote monitoring and support — all from your phone.
02
Best For: Critical Cold Chains
Freezer rooms with frequent traffic, where cold chain integrity is critical and can't be compromised.
03
Installed & Guaranteed
Every Auto Freezer AC is installed by our own specialist technicians, with maintenance covered under a 12-month warranty and spare parts available UK-wide.

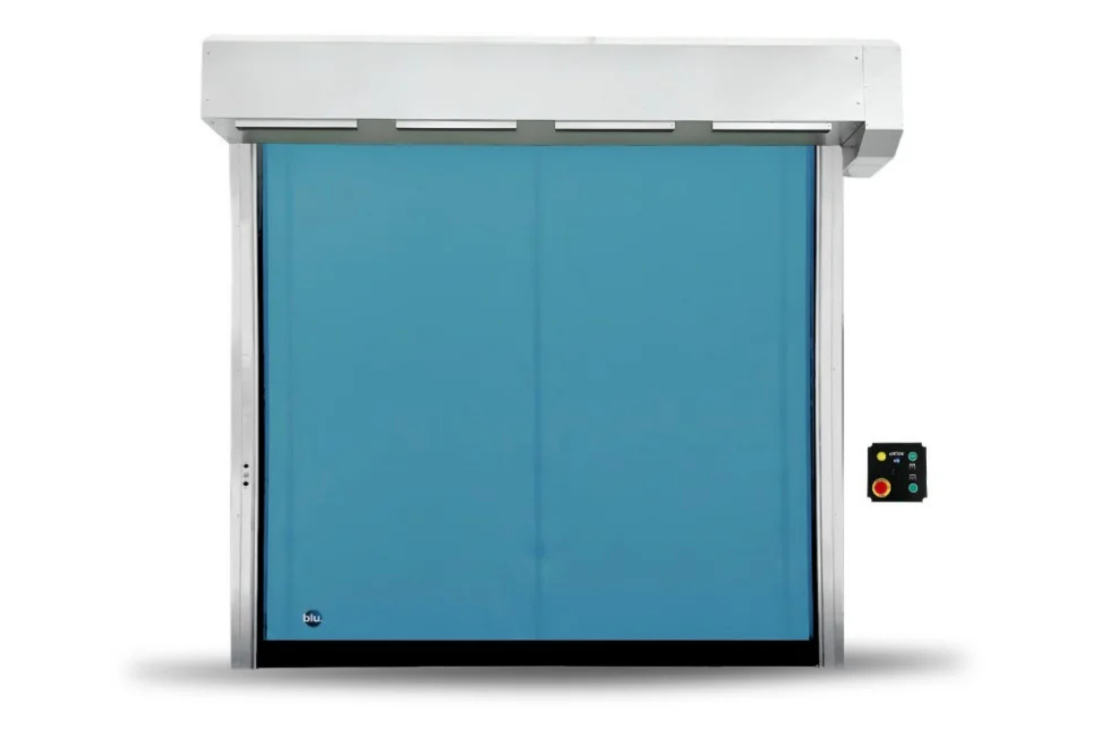

AUTO-FREEZER AC
Header beam
With integrated air curtain
Side frames
Profile housing the electrical system
Guides
Polyethylene sliding profile
Installation
Indoor
Maximum clear opening
Width 5000 mm · Height 5000 mm
Wind resistance
Class 2 · 5000 × 5000 mm
Opening speed
Up to 1.5 m/s
Closing speed
0.5 m/s
Cycles (EN 12604)
1,000,000
Power supply
230 V single-phase
Controls
Start, Stop, Partial opening and Close commands built into the BLU Box control panel
Curtain
Double PVC fabric
Safety devices
Infrared sensors
Anti-jam sensors
Drive unit
Heated drive unit
Guides
Heated sliding profiles
Curtain gap
Warm-air blower heating the gap between the curtains
Our technical sales team will kick things off with a consultation to understand your specific needs.
Next, we'll conduct an on-site assessment to understand the application, gather measurements and identify any potential challenges.
Following the survey, we'll allocate one of our experienced, fully trained partners to supply and install the door in your location.
If you need help with your door following the install, our technical support team is just a phone call away.
Download the GS Doors catalogue for complete specifications, dimensions and technical drawings across the full range.
AUTO-FULL®
High Speed Roll Door for Industrial Use
AUTO-FRIGO®
High Speed Door for Cold Storage
AUTO-FREEZER®
High Speed Door for Freezer Rooms
DUAL-FREEZER®
Maximum-Insulation Door for Sub-Zero Storage
DUAL-AIR®
Extra-Large Folding Door with Wind Protection
AUTO-FULL AC®
High Speed Roll Door with Air Curtain
AUTO-FRIGO AC®
Cold Storage Door with Air Curtain
AUTO-PHARMA®
High Speed Door for Cleanroom & Pharmaceutical Use
AUTO-MACHINE®
Compact Door for Machine Guarding
Drag
Tell us about your opening — dimensions, sector, timeline — and a GS Doors specialist will get back to you with a tailored recommendation and quote for AUTO-FULL®.
AUTO-FREEZER AC adds a directed air blade on top of the same insulated curtain as AUTO-FREEZER, for a second barrier against thermal exchange.
Where cold chain integrity is critical and the opening sees frequent traffic, and the insulated curtain alone isn’t quite enough.
Yes — installation is carried out by our specialist technicians, with maintenance covered under a 12-month warranty.
