An extra-large folding door for exposed bays and wide openings, built for reinforced wind protection.
check
Extra-Large Openings
check
Reinforced Wind Protection
check
External Folding Design

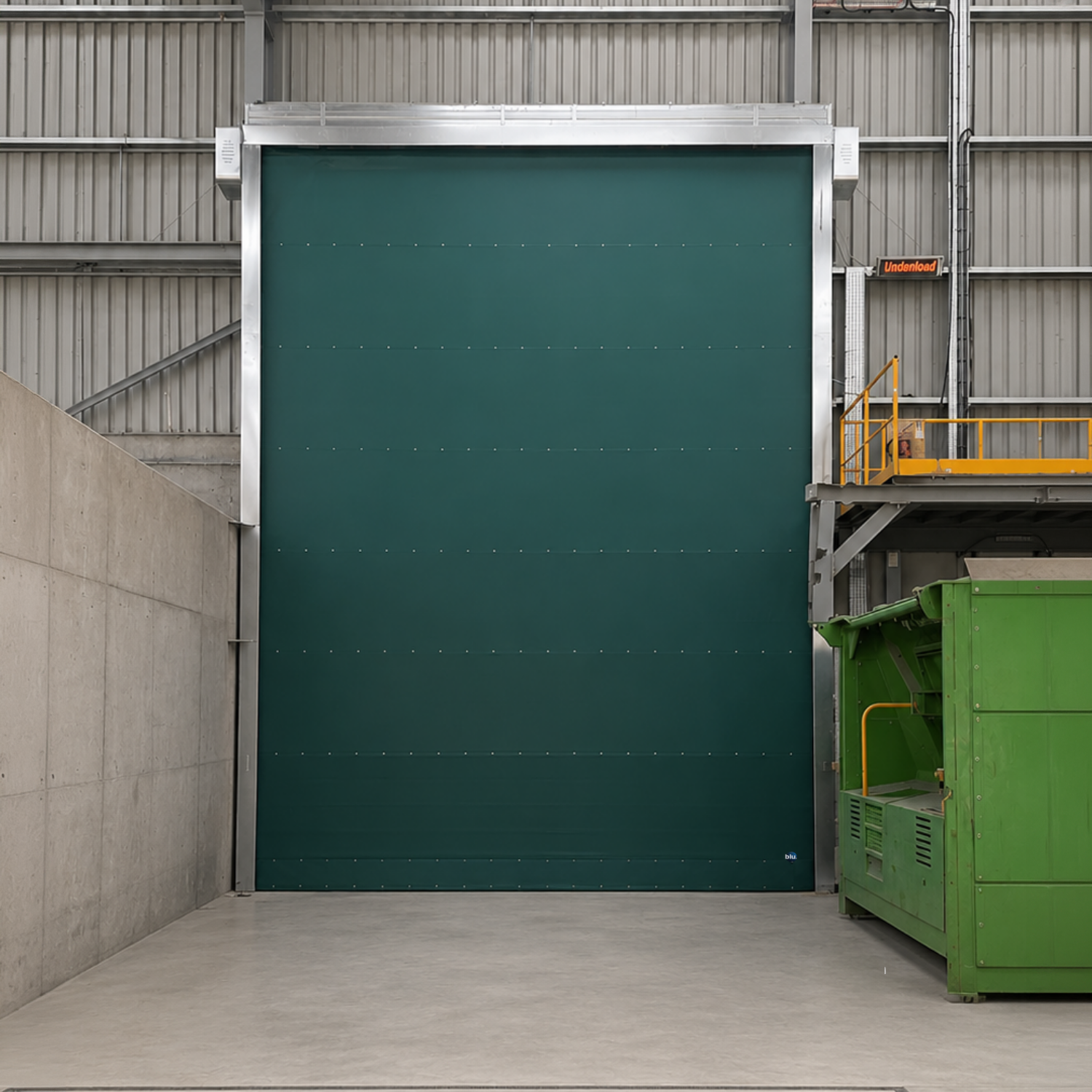

DUAL-AIR is designed specifically for extra-large folding doors, where the size of the opening rules out a standard rapid door or roll door.
On exposed sites, wind protection is the priority — DUAL-AIR’s reinforced construction is built to be the right choice where that protection really matters.
Like FOLD-UP, DUAL-AIR is built to perform on exposed, high-wind external sites, without compromising on the size of opening it can cover.
01
blu. Technology
Blu, the GS Doors' smart control technology, for real-time diagnostics, remote monitoring and support — all from your phone.
02
Best For: Large Openings
Extra-large external openings on exposed sites, where reinforced wind protection is the priority.
03
Installed & Guaranteed
Every Dual Air is installed by our own specialist technicians, with maintenance covered under a 12-month warranty and spare parts available UK-wide.
DUAL-AIR®
Drive unit
Side-mounted / Front-mounted
Header beam
Housing an inspectable wiring box
Side frames
Profile housing the electrical system
Lifting straps
For lifting the curtain
Installation
Indoor / Outdoor
Maximum clear opening
Width 15000 mm · Height 10000 mm
Wind resistance
Class 2 up to 15000 × 10000 mm
Class 3 – Class 4 on a project basis
Opening speed
Up to 0.8 m/s
Closing speed
0.5 m/s
Power supply
400 V three-phase
Controls
Start, Stop, Partial opening and Close commands built into the BLU Box control panel
Curtain
Double PVC fabric
Safety devices
Self-excluding IP67 safety barrier
Our technical sales team will kick things off with a consultation to understand your specific needs.
Next, we'll conduct an on-site assessment to understand the application, gather measurements and identify any potential challenges.
Following the survey, we'll allocate one of our experienced, fully trained partners to supply and install the door in your location.
If you need help with your door following the install, our technical support team is just a phone call away.
Download the GS Doors catalogue for complete specifications, dimensions and technical drawings across the full range.
AUTO-FULL®
High Speed Roll Door for Industrial Use
AUTO-FRIGO®
High Speed Door for Cold Storage
AUTO-FREEZER®
High Speed Door for Freezer Rooms
DUAL-FREEZER®
Maximum-Insulation Door for Sub-Zero Storage
AUTO-FULL AC®
High Speed Roll Door with Air Curtain
AUTO-FRIGO AC®
Cold Storage Door with Air Curtain
AUTO-FREEZER AC
Freezer Door with Air Curtain
AUTO-PHARMA®
High Speed Door for Cleanroom & Pharmaceutical Use
AUTO-MACHINE®
Compact Door for Machine Guarding
Drag
Tell us about your opening — dimensions, sector, timeline — and a GS Doors specialist will get back to you with a tailored recommendation and quote for DUAL-AIR®.
DUAL-AIR is built for extra-large folding doors and wide openings, with reinforced wind protection as the priority; FOLD-UP covers standard external loading-bay openings.
Yes — DUAL-AIR is designed specifically for extra-large folding doors, where the size of the opening rules out a standard rapid door or roll door.
Yes — installation is carried out by our specialist technicians, with maintenance covered under a 12-month warranty.
