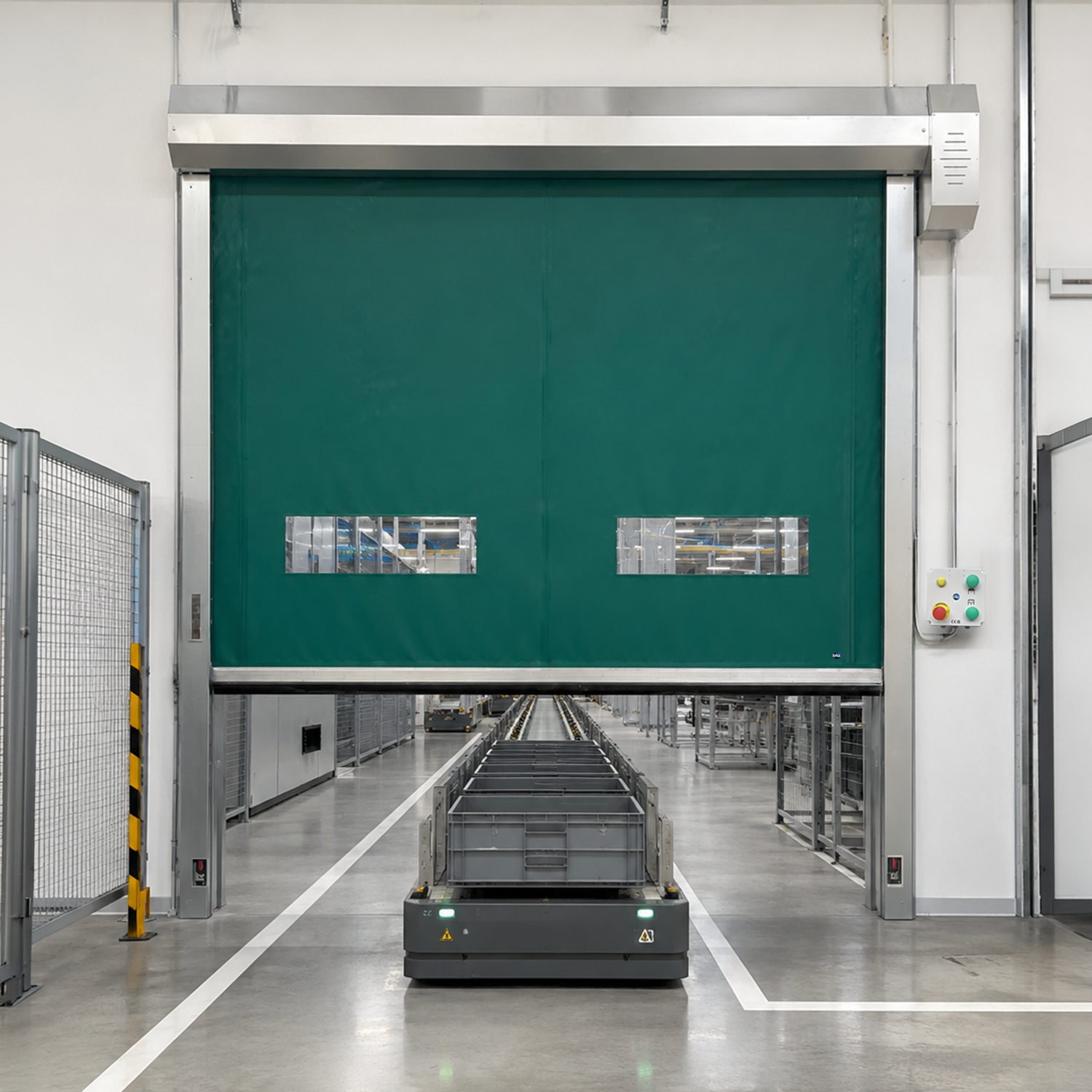

A compact high speed door for machine guarding and enclosures, built to keep pace with automated production lines.
check
Compact Footprint
check
Machine Guarding Design
check
Protects Against Dust & Debris
AUTO-MACHINE is sized to fit around plant and equipment where space is limited, for openings a larger rapid door simply wouldn’t fit.
Rapid cycling is built to keep up with automated lines and robotic cells, so the door isn’t the bottleneck in an otherwise fast-moving process.
AUTO-MACHINE protects machinery and staff from dust and debris generated during production, without interrupting the production cycle to do it.
01
blu. Technology
Blu, the GS Doors' smart control technology, for real-time diagnostics, remote monitoring and support — all from your phone.
02
Best For: Automated Lines
Compact openings around plant and equipment, keeping pace with automated lines and robotic cells.
03
Installed & Guaranteed
Every AUTO-MACHINE is installed by our own specialist technicians, with maintenance covered under a 12-month warranty and spare parts available UK-wide.
AUTO-MACHINE®
Drive unit
Side-mounted / Front-mounted
Header beam
With concealed fixings
Side frames
Inspectable profile housing the electrical system
Guides
Polyethylene sliding profile
Installation
Indoor
Maximum clear opening
Width 6000 mm · Height 6000 mm
Wind resistance
Class 4 up to 3500 × 3500 mm
Class 3 up to 5500 × 5500 mm
Class 2 up to 6000 × 6000 mm
Opening speed
Up to 2 m/s
Closing speed
0.5 m/s
Cycles (EN 12604)
1,000,000
Power supply
500 V three-phase / 400 V three-phase / 400 V inverter / 230 V inverter
Controls
Customisable to suit the installation
Curtain
PVC fabric
Safety devices
Self-excluding IP67 safety barrier
Infrared sensors
Anti-jam sensors
Impact test
Pendulum impact test (EN 14120)
Our technical sales team will kick things off with a consultation to understand your specific needs.
Next, we'll conduct an on-site assessment to understand the application, gather measurements and identify any potential challenges.
Following the survey, we'll allocate one of our experienced, fully trained partners to supply and install the door in your location.
If you need help with your door following the install, our technical support team is just a phone call away.
Download the GS Doors catalogue for complete specifications, dimensions and technical drawings across the full range.
